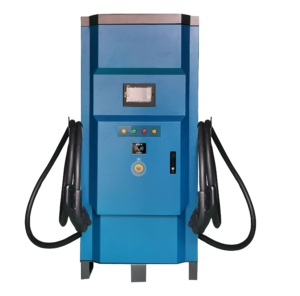

TRỤ SẠC FC120
* Điện áp vào : 380 VAC ± 20%
* Điện áp ra : 200 – 750V
* Dòng sạc : 0~250A
* Công suất: 120kW
* Kích thước : 789x620x1750 (mm)
* Lớp bảo vệ : IP54
Mô tả
FC120750 SIRIES
*Main Characteristics.
- Low standby power consumption (<10w), reducing operating costs;
- Wide output voltage range, 200-750V, applicable to most of vehicles;
- High power density, compact size and small volume, save your space and transportation cost;
- Expertise air duct know-how ensures heat dissipation efficiency thus insure the product reliability;
- Full safety protection makes the product safer;
- Flexible & friendly UI interface, can Customize UI interface style according to customer needs.
* Double gun custom combination arbitrary collocation
- Multi-language interface (UK, Russia, France, Germany, China etc) more intelligent to understand you;
- Support OCPP1.6J (PCPP2.0 upgrade optional);
- Multi charging method: APP, RFID, QR code, Password, Vin code, Super account.
THÔNG TIN SỐ SẢN PHẨM
Model | FC120 |
Rated Power | 120kW |
Input Voltage | AC380V ±20%/480V ±20% |
Input Curent | 190A |
Output Voltage | 200-750V (200-1000V Optional) |
Output Current | 0-250A |
Frequency | 45-60HZ |
Gun Quantity | 2 |
Charging Way | Quick or slow charge automatic switch |
Charging mode | SWIPE CARD, APP, MANUAL |
Lable Leggth | 5M |
Interface | 7″COLOR TOUCH SCREEN + IC CARD CONTACLESS CARD READER |
Network Connection | Standard configuration: CAN/485/Ethernet Selective configuration: GPRS/4G/Wifi |
Size (mm) | 780x620x1750 |
Weight | 230KG |
Temperature | -20oC~+50oC |
Humidity | 2000M |
IP Level | IP54 |
Operating Temperature | 5%-90%RH, non-condensiong |
Input cable length | 0M(Customization Acceptable) |
Cable Length | 5M(Customization Acceptable) |
Standard | GBT20234/EN62196/EN61851-1,JEVSG 105/CHADEMO |
Protocol | GBT27930/CHADEMO2.0/ DIN 70121, OCPP1.6(JSON), ISO 15118 |
